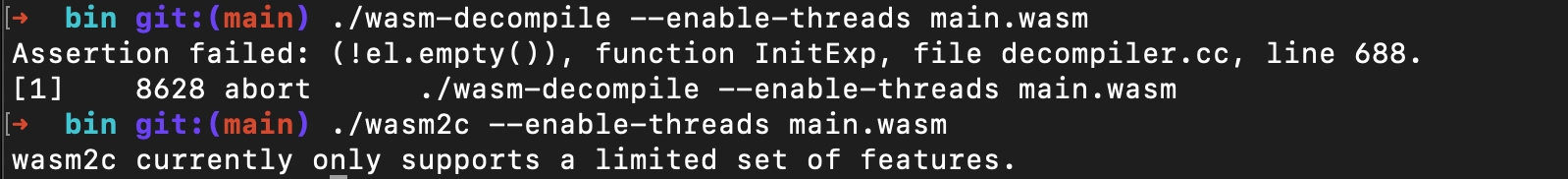

# Reverse Engineering | Challenge | Link | | ---------------------- | ----------------------------- | | Free Play (495 points) | [Here](#free-play-495-points) | ## Free Play (495 points) ### Description \- ### Solution * At initial, we try to decompile using ghidra plugin but it fail, also we can't do decompile and converting to wat using wasm2c and wasm2wat

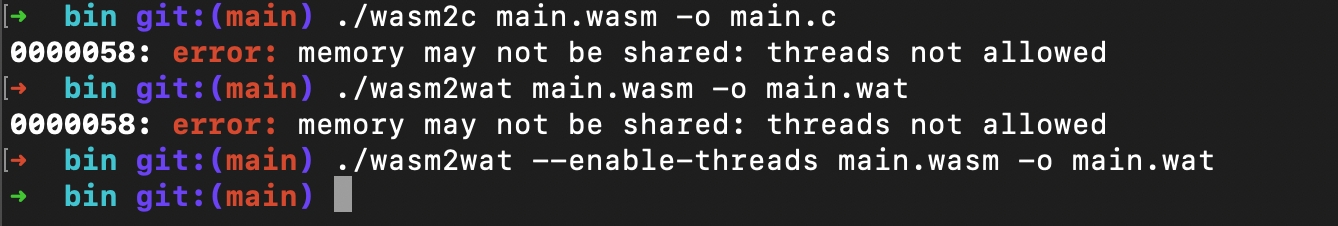

* We found the solution , we set --enable-threads to convert the file to wat

* There is a binary that can convert wat to wasm, so using this approach we try to patch some instruction so we can compiel the wat to wasm and decompile it using ghidra plugin/wasm2c/wasm-decompile

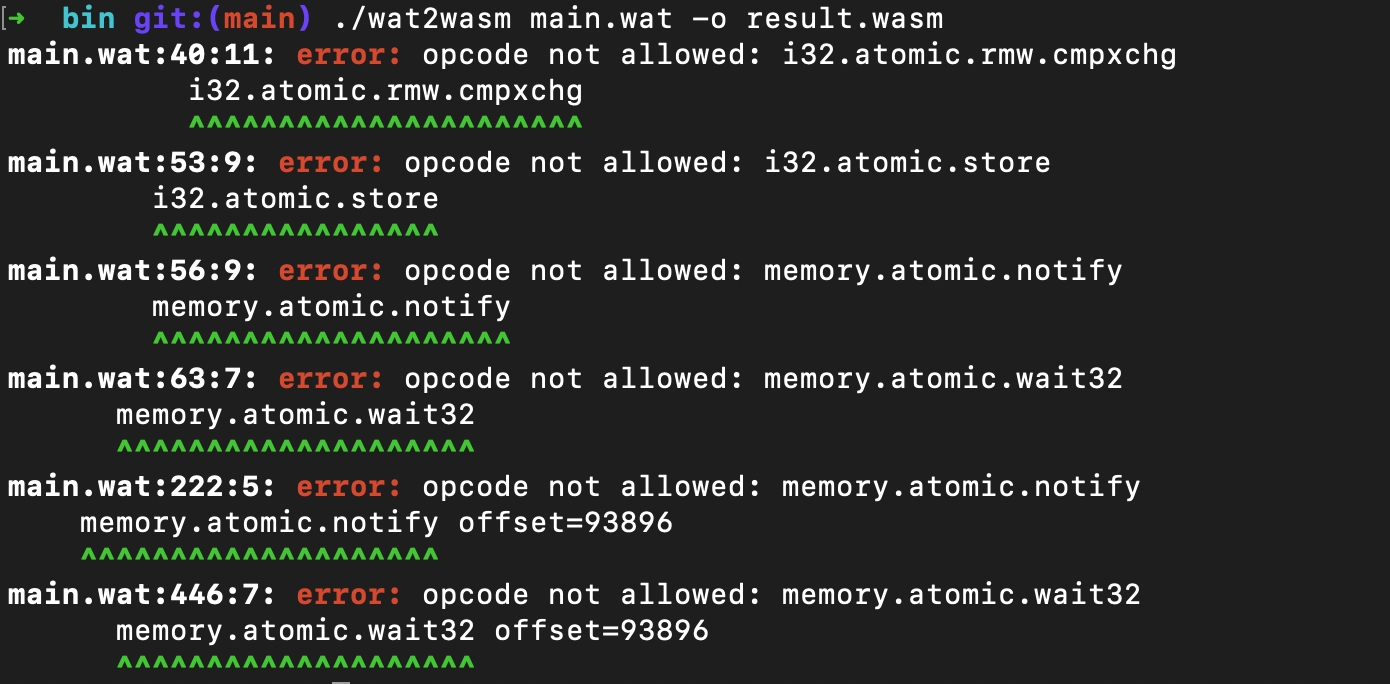

* There are some instruction that can't be converted , so my approach is trying to replacing the instruction and then compile again * here is the patched [main.wat ](https://github.com/kos0ng/ctf-writeups/blob/master/solver/2023/hacktm/re/free-play/main.wat)

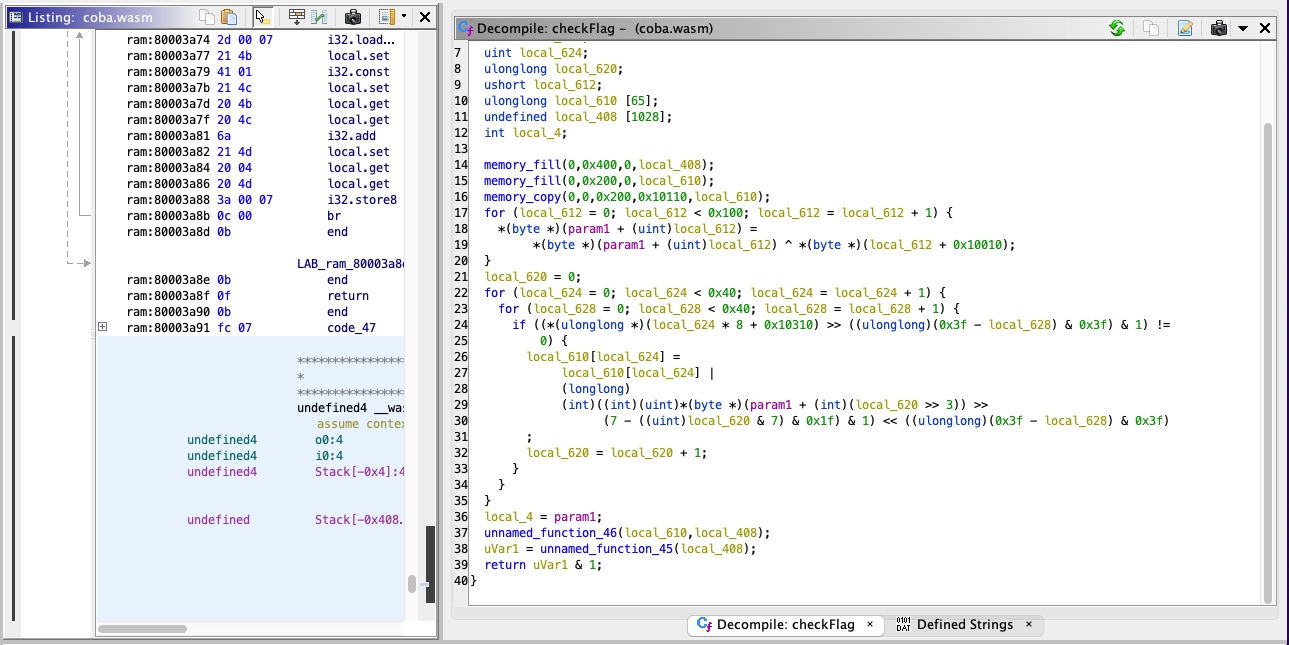

* After that just open it on ghidra , here is the example of opening checkFlag function on ghidra

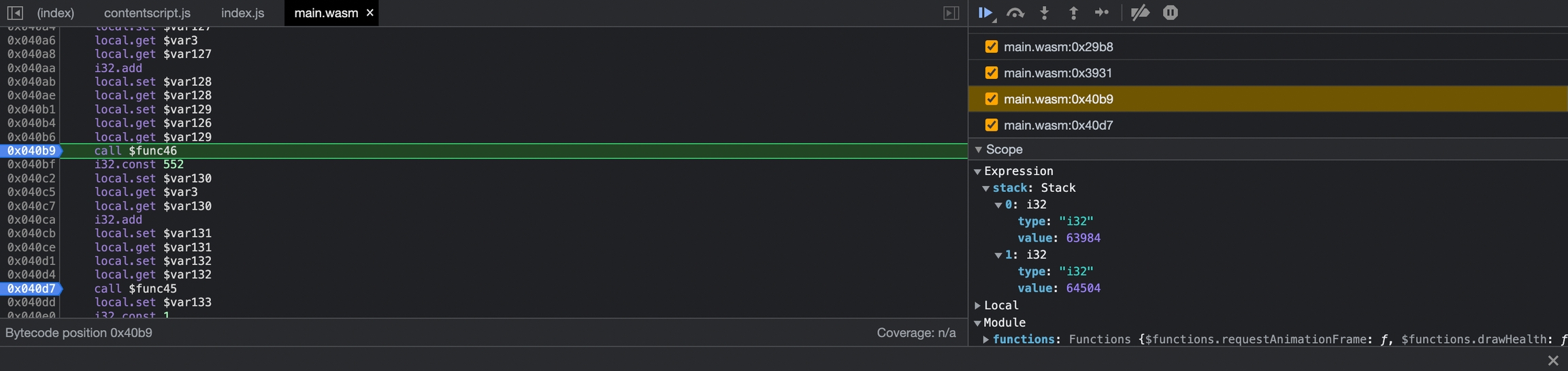

* During the competition we use `chrome` to do dynamic analysis , such as inspecting the value on memory, stack , and register value. * Here is an example when we try to inspecting the value on stack/argument for func46 which is address of memory

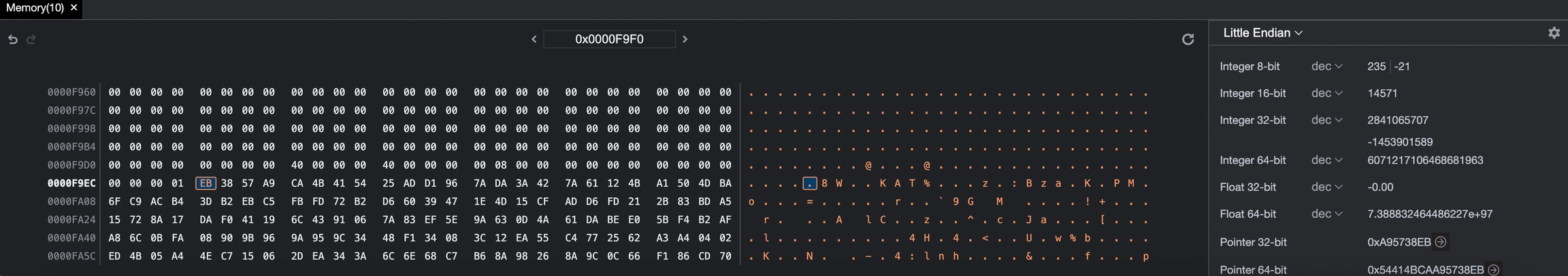

* Here is when we try to inspecting value on address `63984`

* Last part before creating the solver, we try to reconstruct the algorithm in python. Here is reconstructed algorithm in python ```python from Crypto.Util.number import * def bits_on_count(x): return sum(c=='1' for c in bin(x)) def split_bytes(inp): return [(inp>>24)&0xff, (inp>>16)&0xff, (inp>>8)&0xff, inp&0xff] def func_41(list_dec): for i in range(0x40): assert(bits_on_count(list_dec[i]) == 0x20) def func_42(list_dec): for i in range(0,0x40,2): assert(list_dec[i] != list_dec[i+1]) def func_44(list_dec): for i in range(0,4*3,4): first = list_dec[i:i+4] res_var = [] for j in first: # ( ~val & (~val >> 1) ) & (~val >> 2) not_var = ~j&0xffffffff tmp1 = (not_var >> 1) & not_var tmp2 = not_var >> 2 assert((tmp1 & tmp2) == 0) def func_43(list_dec): for i in range(0,4*3,4): first = list_dec[i:i+4] res_var = [] for j in first: # ( val & (val >> 1) ) & (val >> 2) not_var = j&0xffffffff tmp1 = (not_var >> 1) & not_var tmp2 = not_var >> 2 assert((tmp1 & tmp2) == 0) # a var should be static a = [-128,122,-120,40,93,-25,36,112,54,-48,106,-70,-85,45,29,-43,-122,85,50,-7,83,-88,-8,-41,-55,-43,115,14,79,-108,-119,8,-107,20,127,-101,-77,107,37,32,61,-19,-97,104,8,83,-94,43,-116,-93,6,95,-18,82,110,-14,63,89,-64,-25,70,-14,78,101,64,0,91,84,-103,60,64,37,-11,-4,-10,117,-3,-37,-64,37,-22,45,1,-10,3,15,-42,-107,-128,-91,-104,-63,-113,82,11,-37,42,-50,56,-20,-62,89,-5,5,14,-12,121,47,-128,39,32,105,-54,43,72,14,-8,-33,-71,-98,59,105,-34,-1,103,-49,-102,-91,20,-6,-28,96,-81,92,-76,-93,-6,-17,120,-53,18,72,-28,48,80,98,114,-79,111,-6,89,6,103,-94,-46,-98,95,-3,25,-86,73,127,-91,42,-26,6,-49,-13,26,-122,60,-79,112,-92,-55,53,-23,-110,-20,-105,-57,4,-81,36,81,-23,56,118,87,-115,106,68,-10,-41,33,94,-83,-17,-16,-108,1,123,-91,-77,57,90,-128,-108,105,-9,58,-128,-57,-90,27,-38,-77,26,10,-52,-23,44,30,-46,84,14,22,14,101,42,3,98,-78,86,88,126,-26,16,-106,-43,76,-26,101,45,31,48,59,9,92,8,-108,-61,54,63,-71,51,11,16,85,33,-56,66,65,64,36,-83,1,-110,98,82,2,64,18,64,18,1,-127,0,5,-86,69,72,-116,-76,40,50,106,64,41,-80,82,2,6,0,49,66,18,73,0,75,-120,-106,-52,0,3,-125,32,36,0,34,10,20,-64,96,0,1,96] ct = [84, 195, 224, 136, 93, 57, 235, 173, 225, 212, 195, 104, 179, 158, 23, 197, 133, 34, 93, 247, 16, 140, 227, 165, 123, 170, 183, 195, 106, 176, 86, 205, 82, 51, 212, 85, 181, 100, 52, 52, 144, 87, 159, 183, 230, 119, 44, 193, 114, 56, 45, 56, 233, 204, 145, 64, 15, 242, 122, 135, 210, 22, 166, 104, 188, 243, 56, 245, 88, 226, 27, 186, 180, 174, 234, 198, 200, 188, 80, 253, 137, 46, 230, 197, 12, 247, 172, 70, 160, 159, 248, 147, 2, 244, 235, 191, 39, 134, 233, 159, 113, 213, 167, 214, 127, 46, 88, 152, 24, 25, 2, 29, 132, 103, 113, 221, 206, 41, 88, 28, 117, 126, 74, 82, 238, 161, 175, 253, 151, 138, 83, 166, 224, 26, 80, 98, 24, 120, 17, 38, 243, 100, 8, 106, 236, 108, 74, 106, 166, 55, 222, 87, 131, 231, 244, 9, 124, 10, 123, 241, 193, 160, 68, 160, 177, 233, 135, 96, 92, 117, 151, 56, 245, 117, 79, 147, 242, 132, 24, 90, 175, 202, 29, 157, 231, 205, 132, 97, 170, 230, 82, 106, 206, 111, 107, 129, 190, 49, 243, 97, 114, 95, 116, 221, 60, 59, 224, 212, 175, 235, 201, 255, 29, 75, 25, 153, 43, 208, 138, 111, 1, 197, 216, 124, 76, 125, 27, 190, 140, 188, 129, 127, 77, 9, 84, 252, 155, 239, 97, 85, 76, 216, 133, 191, 73, 96, 212, 71, 163, 143, 50, 103, 12, 251, 28, 214] # shift_val should be static shift_val = [11,16,85,33,-56,66,65,64,36,-83,1,-110,98,82,2,64,18,64,18,1,-127,0,5,-86,69,72,-116,-76,40,50,106,64,41,-80,82,2,6,0,49,66,18,73,0,75,-120,-106,-52,0,3,-125,32,36,0,34,10,20,-64,96,0,1,96,0,0,0,72,-126,69,68,-120,33,8,74,1,66,-94,0,25,-48,-78,-91,-96,12,8,-104,0,0,1,2,-126,16,20,36,8,1,48,8,52,0,-88,17,68,86,1,32,33,-124,4,2,-119,64,5,36,74,-61,16,4,33,-96,36,26,100,42,8,-61,50,8,-120,38,-128,-128,4,66,-111,-128,-56,32,-108,4,8,32,8,8,52,16,66,106,4,0,48,-95,-80,98,-123,50,0,66,12,4,11,26,0,0,36,16,72,9,17,0,2,67,0,84,-76,-80,72,1,-107,-91,17,1,0,16,37,-96,74,82,82,-104,2,10,-119,-112,-96,-96,37,-96,-92,-96,12,10,1,4,26,34,1,-109,96,25,26,-110,4,-123,-128,68,-111,20,12,21,16,16,13,-47,0,41,-111,42,6,100,8,49,-104,-127,2,9,40,-125,-112,72,5,-128,33,32,-64,104,96,2,-64,2,-124,-96,44,-63,10,-111,32,-119,88,80,1,-76,80,-112,18,0,-104,-124,80,4,-120,8,105,108,-92,1,1,-120,12,72,3,68,8,-126,-122,-64,-112,64,12,0,17,4,-122,36,32,8,32,2,6,-124,40,0,-124,4,-126,-87,32,88,2,0,8,10,-108,69,-110,-119,4,8,-128,53,105,-120,64,-126,-124,0,17,74,44,4,4,12,-119,73,2,-103,-126,26,4,-128,100,22,16,64,-112,1,73,96,8,68,54,73,11,1,25,0,38,2,36,-128,68,-124,32,37,-112,16,10,96,4,73,2,0,64,36,37,80,64,-128,0,4,40,75,0,-108,-96,36,1,-88,20,4,0,104,-106,8,16,16,17,108,0,18,8,32,-95,44,64,0,18,-90,76,80,20,-112,37,-76,8,9,18,42,18,-128,68,1,4,34,20,0,73,50,-119,26,-96,-127,32,75,-109,96,6,100,-39,34,36,9,0,73,64,-104,33,65,-117,52,3,33,-112,44,-112,4,32,33,-112,-96,16,68,-128,-120,89,-111,-96,20,40,0,10,10,88,20,34,8,9,-79,-95,0,-92,0,25,-92,-111,96,-74,2,0,1,48,8,22,-128,73,-128,80,32,64,-106,34,-127,20,-112,1,32,32,6,77,2,17,22,26,20,-32,45,-86,-114,35,-87,-82,20,-63,2,-40,37,-100,-119,-7,27,-24,-77,44,-38,120,-9,-24,17,-86,-111,115,3,85,-128,-111,-99,-42,77,-87,-15,-48,105,74,-99,109,-122,119,-124,55,97,49,-67,108,24,-35,-127,-97,-40,-28,75,31,-98,95,-2,-98,127,-97,-34,51,117,-86,58,82,70,101,33,118,-67,28,-5,-58,39,0,74,95,114,99,102,47,-37,-6,-12,88,-17,-119,-47,113,-12,14,-43,-120,-5,87,68,-110,33,108,-42,-114,32,112,93,118,31,-102,-126,53,28,-123,-78,76,79,-109,97,-103,84,-29,60,-124,-93,83,8,90,60,-101,53,104,94,21,-44,107,-101,-11,-33,68,101,-63,-49,56,21,35,-5,-57,26,11,13,58,77,-7,-92,-79,-69,116,-124,-106,-35,-118,-17,-78,-48,-26,-65,-35,44,-9,-117,2,70,-74,-2,104,74,108,-2,-51,-113,-112,83,-75,-95,13,101,-3,116,118,111,79,12,-64,22,74,20,-31,112,-76,-55,100,-55,-24,12,14,-60,69,97,-5,26,26,43,40,-93,97,-62,102,-81,-14,12,-2,-48,46,80,-88,-110,-105,-122,35,20,-35,86,-57,84,42,55,98,91,90,-121,59,-105,-99,100,31,-3,122,76,-46,42,-80,78,-108,112,-89,39,-40,10,39,10,-20,-105,103,99,14,99,37,-27,6,1,82,46,110,66,-80,-89,88,51,-13,124,49,23,66,-106,-13,-97,-18,121,49,-56,-37,-105,93,-35,-112,99,87,-17,105,-22,92,68,-51,-89,-3,-43,-79,-43,74,-110,9,116,83,85,126,64,16,35,-65,45,98,-6,68,-76,-64,-23,-31,96,50,-124,-24,38,116,68,107,95,24,97,-81,63,5,-90,-106,23,-73,-86,-55,-90,36,-50,-32,82,-39,121,-39,26,26,59,-42,-118,39,77,-11,7,-71,34,-3,41,-97,-40,-118,47,41,119,-7,-14,71,-76,-21,40,78,91,78,3,-21,-112,-1,-123,8,-25,-21,103,-50,-109,119,72,103,-42,92,-61,-69,-37,-63,24,-77,7,-54,103,-102,9,-12,-14,-23,-59,-20,95,-78,116,-29,77,-54,37,-128,76,66,-28,90,116,95,-76,12,-116,-103,-128,2,-107,-117,116,-76,-94,-74,71,-52,30,116,-118,-8,-34,45,-64,71,-21,15,72,74,94,-92,-112,63,82,-96,78,84,-23,-46,107,-44,113,-121,106,-39,-105,-10,6,12,-1,81,57,66,67,6,-117,64,121,61,-6,-58,-45,-120,125,52,38,-118,92,-119,73,-36,116,-86,75,124,27,-105,-95,0,-23,-22,96,-28,-117,-18,2,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0] # check_val should be static check_val = [-32,45,-86,-114,35,-87,-82,20,-63,2,-40,37,-100,-119,-7,27,-24,-77,44,-38,120,-9,-24,17,-86,-111,115,3,85,-128,-111,-99,-42,77,-87,-15,-48,105,74,-99,109,-122,119,-124,55,97,49,-67,108,24,-35,-127,-97,-40,-28,75,31,-98,95,-2,-98,127,-97,-34,51,117,-86,58,82,70,101,33,118,-67,28,-5,-58,39,0,74,95,114,99,102,47,-37,-6,-12,88,-17,-119,-47,113,-12,14,-43,-120,-5,87,68,-110,33,108,-42,-114,32,112,93,118,31,-102,-126,53,28,-123,-78,76,79,-109,97,-103,84,-29,60,-124,-93,83,8,90,60,-101,53,104,94,21,-44,107,-101,-11,-33,68,101,-63,-49,56,21,35,-5,-57,26,11,13,58,77,-7,-92,-79,-69,116,-124,-106,-35,-118,-17,-78,-48,-26,-65,-35,44,-9,-117,2,70,-74,-2,104,74,108,-2,-51,-113,-112,83,-75,-95,13,101,-3,116,118,111,79,12,-64,22,74,20,-31,112,-76,-55,100,-55,-24,12,14,-60,69,97,-5,26,26,43,40,-93,97,-62,102,-81,-14,12,-2,-48,46,80,-88,-110,-105,-122,35,20,-35,86,-57,84,42,55,98,91,90,-121,59,-105,-99,100,31,-3,122,76,-46,42,-80,78,-108,112,-89,39,-40,10,39,10,-20,-105,103,99,14,99,37,-27,6,1,82,46,110,66,-80,-89,88,51,-13,124,49,23,66,-106,-13,-97,-18,121,49,-56,-37,-105,93,-35,-112,99,87,-17,105,-22,92,68,-51,-89,-3,-43,-79,-43,74,-110,9,116,83,85,126,64,16,35,-65,45,98,-6,68,-76,-64,-23,-31,96,50,-124,-24,38,116,68,107,95,24,97,-81,63,5,-90,-106,23,-73,-86,-55,-90,36,-50,-32,82,-39,121,-39,26,26,59,-42,-118,39,77,-11,7,-71,34,-3,41,-97,-40,-118,47,41,119,-7,-14,71,-76,-21,40,78,91,78,3,-21,-112,-1,-123,8,-25,-21,103,-50,-109,119,72,103,-42,92,-61,-69,-37,-63,24,-77,7,-54,103,-102,9,-12,-14,-23,-59,-20,95,-78,116,-29,77,-54,37,-128,76,66,-28,90,116,95,-76,12,-116,-103,-128,2,-107,-117,116,-76,-94,-74,71,-52,30,116,-118,-8,-34,45,-64,71,-21,15,72,74,94,-92,-112,63,82,-96,78,84,-23,-46,107,-44,113,-121,106,-39,-105,-10,6,12,-1,81,57,66,67,6,-117,64,121,61,-6,-58,-45,-120,125,52,38,-118,92,-119,73,-36,116,-86,75,124,27,-105,-95,0,-23,-22,96,-28,-117,76] xor_val = [] for i in a: xor_val.append(i&0xff) shift_val_2 = [] for i in shift_val: shift_val_2.append(i&0xff) check_val_2 = [] for i in check_val: check_val_2.append(i&0xff) res = [] for i in range(len(ct)): res.append(ct[i]^xor_val[i]) list_dec = [] for i in range(0,8*0x40,8): tmp = bytes(shift_val_2[i:i+8])[::-1] list_dec.append(bytes_to_long(tmp)) list_check = [] for i in range(0,8*0x40,8): tmp = bytes(check_val_2[i:i+8])[::-1] list_check.append(bytes_to_long(tmp)) local_620 = 0 for i in range(0x40): for j in range(0x40): if( ((list_check[i] >> ((0x3f - j) & 0x3f)) & 1 ) != 0): tmp = ((res[local_620 >> 3] >> (7 - ((local_620 & 7) & 0x1f ))) & 1 ) www = ((0x3f - j) & 0x3f) tmp <<= www list_dec[i] |= tmp local_620 += 1 list_dec_2 = [0 for _ in range(0x40)] for i in range(0x40): for j in range(0x40): list_dec_2[i] <<= 1 list_dec_2[i] |= (list_dec[j] >> ((0x3f - i) & 0x3f)) & 1 bytes_dec = [] bytes_dec_2 = [] for i in list_dec: tmp = long_to_bytes(i)[::-1] for j in tmp: bytes_dec.append(j) for i in list_dec_2: tmp = long_to_bytes(i)[::-1] for j in tmp: bytes_dec_2.append(j) list_42 = [] list_42_2 = [] for i in range(len(list_dec)): first = list_dec[i]&0xffffffff second = list_dec[i]>>32 first_2 = list_dec_2[i]&0xffffffff second_2 = list_dec_2[i]>>32 list_42.append(first) list_42.append(second) list_42_2.append(first_2) list_42_2.append(second_2) func_41(list_dec) func_41(list_dec_2) func_42(list_dec) func_42(list_dec_2) func_44(list_42) func_44(list_42_2) func_43(list_42) func_43(list_42_2) ``` * After reconstructing the process the last step is solving it using z3, but in this case we failed to find the flag and the algorithm is weird because its only check partial of value not all. * But after opening ticket we found that there is an issue from the challenge, so by changing the loop to check all the values we got the flag. * Here is the final script we used ```python from Crypto.Util.number import * from z3 import * from functools import reduce from Crypto.Cipher import AES def sub(b): n = b.size() bits = [ Extract(i, i, b) for i in range(n) ] bvs = [ Concat(BitVecVal(0, n - 1), b) for b in bits ] nb = reduce(lambda a, b: a + b, bvs) return nb def func_41(list_dec): for i in range(0x40): s.add(sub(list_dec[i]) == 0x20) s.add(sub(list_dec_2[i]) == 0x20) def func_42(list_dec): for i in range(0,0x40,2): s.add(list_dec[i] != list_dec[i+1]) def func_44(list_dec): for i in range(len(list_dec)): not_var = ~(list_dec[i]) tmp1 = LShR(not_var , 1) & not_var tmp2 = LShR(not_var, 2) s.add((tmp1 & tmp2) == 0) # 0xD422EB74 >> 1 == 0xEA1175BA weird of unsigned def func_43(list_dec): for i in range(len(list_dec)): not_var = list_dec[i] tmp1 = LShR(not_var , 1) & not_var tmp2 = LShR(not_var, 2) s.add((tmp1 & tmp2) == 0) # 0xD422EB74 >> 1 == 0xEA1175BA weird of unsigned a = [-128,122,-120,40,93,-25,36,112,54,-48,106,-70,-85,45,29,-43,-122,85,50,-7,83,-88,-8,-41,-55,-43,115,14,79,-108,-119,8,-107,20,127,-101,-77,107,37,32,61,-19,-97,104,8,83,-94,43,-116,-93,6,95,-18,82,110,-14,63,89,-64,-25,70,-14,78,101,64,0,91,84,-103,60,64,37,-11,-4,-10,117,-3,-37,-64,37,-22,45,1,-10,3,15,-42,-107,-128,-91,-104,-63,-113,82,11,-37,42,-50,56,-20,-62,89,-5,5,14,-12,121,47,-128,39,32,105,-54,43,72,14,-8,-33,-71,-98,59,105,-34,-1,103,-49,-102,-91,20,-6,-28,96,-81,92,-76,-93,-6,-17,120,-53,18,72,-28,48,80,98,114,-79,111,-6,89,6,103,-94,-46,-98,95,-3,25,-86,73,127,-91,42,-26,6,-49,-13,26,-122,60,-79,112,-92,-55,53,-23,-110,-20,-105,-57,4,-81,36,81,-23,56,118,87,-115,106,68,-10,-41,33,94,-83,-17,-16,-108,1,123,-91,-77,57,90,-128,-108,105,-9,58,-128,-57,-90,27,-38,-77,26,10,-52,-23,44,30,-46,84,14,22,14,101,42,3,98,-78,86,88,126,-26,16,-106,-43,76,-26,101,45,31,48,59,9,92,8,-108,-61,54,63,-71,51,11,16,85,33,-56,66,65,64,36,-83,1,-110,98,82,2,64,18,64,18,1,-127,0,5,-86,69,72,-116,-76,40,50,106,64,41,-80,82,2,6,0,49,66,18,73,0,75,-120,-106,-52,0,3,-125,32,36,0,34,10,20,-64,96,0,1,96] shift_val = [11,16,85,33,-56,66,65,64,36,-83,1,-110,98,82,2,64,18,64,18,1,-127,0,5,-86,69,72,-116,-76,40,50,106,64,41,-80,82,2,6,0,49,66,18,73,0,75,-120,-106,-52,0,3,-125,32,36,0,34,10,20,-64,96,0,1,96,0,0,0,72,-126,69,68,-120,33,8,74,1,66,-94,0,25,-48,-78,-91,-96,12,8,-104,0,0,1,2,-126,16,20,36,8,1,48,8,52,0,-88,17,68,86,1,32,33,-124,4,2,-119,64,5,36,74,-61,16,4,33,-96,36,26,100,42,8,-61,50,8,-120,38,-128,-128,4,66,-111,-128,-56,32,-108,4,8,32,8,8,52,16,66,106,4,0,48,-95,-80,98,-123,50,0,66,12,4,11,26,0,0,36,16,72,9,17,0,2,67,0,84,-76,-80,72,1,-107,-91,17,1,0,16,37,-96,74,82,82,-104,2,10,-119,-112,-96,-96,37,-96,-92,-96,12,10,1,4,26,34,1,-109,96,25,26,-110,4,-123,-128,68,-111,20,12,21,16,16,13,-47,0,41,-111,42,6,100,8,49,-104,-127,2,9,40,-125,-112,72,5,-128,33,32,-64,104,96,2,-64,2,-124,-96,44,-63,10,-111,32,-119,88,80,1,-76,80,-112,18,0,-104,-124,80,4,-120,8,105,108,-92,1,1,-120,12,72,3,68,8,-126,-122,-64,-112,64,12,0,17,4,-122,36,32,8,32,2,6,-124,40,0,-124,4,-126,-87,32,88,2,0,8,10,-108,69,-110,-119,4,8,-128,53,105,-120,64,-126,-124,0,17,74,44,4,4,12,-119,73,2,-103,-126,26,4,-128,100,22,16,64,-112,1,73,96,8,68,54,73,11,1,25,0,38,2,36,-128,68,-124,32,37,-112,16,10,96,4,73,2,0,64,36,37,80,64,-128,0,4,40,75,0,-108,-96,36,1,-88,20,4,0,104,-106,8,16,16,17,108,0,18,8,32,-95,44,64,0,18,-90,76,80,20,-112,37,-76,8,9,18,42,18,-128,68,1,4,34,20,0,73,50,-119,26,-96,-127,32,75,-109,96,6,100,-39,34,36,9,0,73,64,-104,33,65,-117,52,3,33,-112,44,-112,4,32,33,-112,-96,16,68,-128,-120,89,-111,-96,20,40,0,10,10,88,20,34,8,9,-79,-95,0,-92,0,25,-92,-111,96,-74,2,0,1,48,8,22,-128,73,-128,80,32,64,-106,34,-127,20,-112,1,32,32,6,77,2,17,22,26,20,-32,45,-86,-114,35,-87,-82,20,-63,2,-40,37,-100,-119,-7,27,-24,-77,44,-38,120,-9,-24,17,-86,-111,115,3,85,-128,-111,-99,-42,77,-87,-15,-48,105,74,-99,109,-122,119,-124,55,97,49,-67,108,24,-35,-127,-97,-40,-28,75,31,-98,95,-2,-98,127,-97,-34,51,117,-86,58,82,70,101,33,118,-67,28,-5,-58,39,0,74,95,114,99,102,47,-37,-6,-12,88,-17,-119,-47,113,-12,14,-43,-120,-5,87,68,-110,33,108,-42,-114,32,112,93,118,31,-102,-126,53,28,-123,-78,76,79,-109,97,-103,84,-29,60,-124,-93,83,8,90,60,-101,53,104,94,21,-44,107,-101,-11,-33,68,101,-63,-49,56,21,35,-5,-57,26,11,13,58,77,-7,-92,-79,-69,116,-124,-106,-35,-118,-17,-78,-48,-26,-65,-35,44,-9,-117,2,70,-74,-2,104,74,108,-2,-51,-113,-112,83,-75,-95,13,101,-3,116,118,111,79,12,-64,22,74,20,-31,112,-76,-55,100,-55,-24,12,14,-60,69,97,-5,26,26,43,40,-93,97,-62,102,-81,-14,12,-2,-48,46,80,-88,-110,-105,-122,35,20,-35,86,-57,84,42,55,98,91,90,-121,59,-105,-99,100,31,-3,122,76,-46,42,-80,78,-108,112,-89,39,-40,10,39,10,-20,-105,103,99,14,99,37,-27,6,1,82,46,110,66,-80,-89,88,51,-13,124,49,23,66,-106,-13,-97,-18,121,49,-56,-37,-105,93,-35,-112,99,87,-17,105,-22,92,68,-51,-89,-3,-43,-79,-43,74,-110,9,116,83,85,126,64,16,35,-65,45,98,-6,68,-76,-64,-23,-31,96,50,-124,-24,38,116,68,107,95,24,97,-81,63,5,-90,-106,23,-73,-86,-55,-90,36,-50,-32,82,-39,121,-39,26,26,59,-42,-118,39,77,-11,7,-71,34,-3,41,-97,-40,-118,47,41,119,-7,-14,71,-76,-21,40,78,91,78,3,-21,-112,-1,-123,8,-25,-21,103,-50,-109,119,72,103,-42,92,-61,-69,-37,-63,24,-77,7,-54,103,-102,9,-12,-14,-23,-59,-20,95,-78,116,-29,77,-54,37,-128,76,66,-28,90,116,95,-76,12,-116,-103,-128,2,-107,-117,116,-76,-94,-74,71,-52,30,116,-118,-8,-34,45,-64,71,-21,15,72,74,94,-92,-112,63,82,-96,78,84,-23,-46,107,-44,113,-121,106,-39,-105,-10,6,12,-1,81,57,66,67,6,-117,64,121,61,-6,-58,-45,-120,125,52,38,-118,92,-119,73,-36,116,-86,75,124,27,-105,-95,0,-23,-22,96,-28,-117,-18,2,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0] check_val = [-32,45,-86,-114,35,-87,-82,20,-63,2,-40,37,-100,-119,-7,27,-24,-77,44,-38,120,-9,-24,17,-86,-111,115,3,85,-128,-111,-99,-42,77,-87,-15,-48,105,74,-99,109,-122,119,-124,55,97,49,-67,108,24,-35,-127,-97,-40,-28,75,31,-98,95,-2,-98,127,-97,-34,51,117,-86,58,82,70,101,33,118,-67,28,-5,-58,39,0,74,95,114,99,102,47,-37,-6,-12,88,-17,-119,-47,113,-12,14,-43,-120,-5,87,68,-110,33,108,-42,-114,32,112,93,118,31,-102,-126,53,28,-123,-78,76,79,-109,97,-103,84,-29,60,-124,-93,83,8,90,60,-101,53,104,94,21,-44,107,-101,-11,-33,68,101,-63,-49,56,21,35,-5,-57,26,11,13,58,77,-7,-92,-79,-69,116,-124,-106,-35,-118,-17,-78,-48,-26,-65,-35,44,-9,-117,2,70,-74,-2,104,74,108,-2,-51,-113,-112,83,-75,-95,13,101,-3,116,118,111,79,12,-64,22,74,20,-31,112,-76,-55,100,-55,-24,12,14,-60,69,97,-5,26,26,43,40,-93,97,-62,102,-81,-14,12,-2,-48,46,80,-88,-110,-105,-122,35,20,-35,86,-57,84,42,55,98,91,90,-121,59,-105,-99,100,31,-3,122,76,-46,42,-80,78,-108,112,-89,39,-40,10,39,10,-20,-105,103,99,14,99,37,-27,6,1,82,46,110,66,-80,-89,88,51,-13,124,49,23,66,-106,-13,-97,-18,121,49,-56,-37,-105,93,-35,-112,99,87,-17,105,-22,92,68,-51,-89,-3,-43,-79,-43,74,-110,9,116,83,85,126,64,16,35,-65,45,98,-6,68,-76,-64,-23,-31,96,50,-124,-24,38,116,68,107,95,24,97,-81,63,5,-90,-106,23,-73,-86,-55,-90,36,-50,-32,82,-39,121,-39,26,26,59,-42,-118,39,77,-11,7,-71,34,-3,41,-97,-40,-118,47,41,119,-7,-14,71,-76,-21,40,78,91,78,3,-21,-112,-1,-123,8,-25,-21,103,-50,-109,119,72,103,-42,92,-61,-69,-37,-63,24,-77,7,-54,103,-102,9,-12,-14,-23,-59,-20,95,-78,116,-29,77,-54,37,-128,76,66,-28,90,116,95,-76,12,-116,-103,-128,2,-107,-117,116,-76,-94,-74,71,-52,30,116,-118,-8,-34,45,-64,71,-21,15,72,74,94,-92,-112,63,82,-96,78,84,-23,-46,107,-44,113,-121,106,-39,-105,-10,6,12,-1,81,57,66,67,6,-117,64,121,61,-6,-58,-45,-120,125,52,38,-118,92,-119,73,-36,116,-86,75,124,27,-105,-95,0,-23,-22,96,-28,-117,76] ct = [BitVec("ct_{}".format(i), 64) for i in range(256)] s = Solver() for i in range(256): s.add(ct[i]&0xff < 256) xor_val = [] for i in a: xor_val.append(i&0xff) shift_val_2 = [] for i in shift_val: shift_val_2.append(i&0xff) check_val_2 = [] for i in check_val: check_val_2.append(i&0xff) res = [] for i in range(len(ct)): res.append(ct[i]^xor_val[i]) list_dec = [] for i in range(0,8*0x40,8): tmp = bytes(shift_val_2[i:i+8])[::-1] list_dec.append(BitVecVal(bytes_to_long(tmp),64)) list_check = [] for i in range(0,8*0x40,8): tmp = bytes(check_val_2[i:i+8])[::-1] list_check.append(bytes_to_long(tmp)) local_620 = 0 for i in range(0x40): for j in range(0x40): if( ((list_check[i] >> ((0x3f - j) & 0x3f)) & 1 ) != 0): tmp = (LShR(res[local_620 >> 3],(7 - ((local_620 & 7) & 0x1f ))) & 1 ) www = ((0x3f - j) & 0x3f) tmp <<= www list_dec[i] |= tmp local_620 += 1 list_dec_2 = [BitVecVal(0,64) for _ in range(0x40)] for i in range(0x40): for j in range(0x40): list_dec_2[i] <<= 1 list_dec_2[i] |= LShR(list_dec[j] , ((0x3f - i) & 0x3f)) & 1 func_41(list_dec) func_41(list_dec_2) func_42(list_dec) func_42(list_dec_2) func_44(list_dec) func_44(list_dec_2) func_43(list_dec) func_43(list_dec_2) print(s.check()) key = bytes([202, 102, 28, 101, 4, 34, 8, 203, 208, 209, 107, 44, 182, 218, 153, 203]) iv = bytes([81, 62, 98, 66, 69, 240, 205, 237, 65, 41, 101, 220, 140, 39, 27, 180]) model = s.model() list_ct = [] for x in ct: list_ct.append(model[x].as_long()&0xff) result = bytes(list_ct) cipher = AES.new(key, AES.MODE_CBC, iv) print(f"CT value : {result.hex()}") print(f"Flag : {cipher.decrypt(result)}") ```

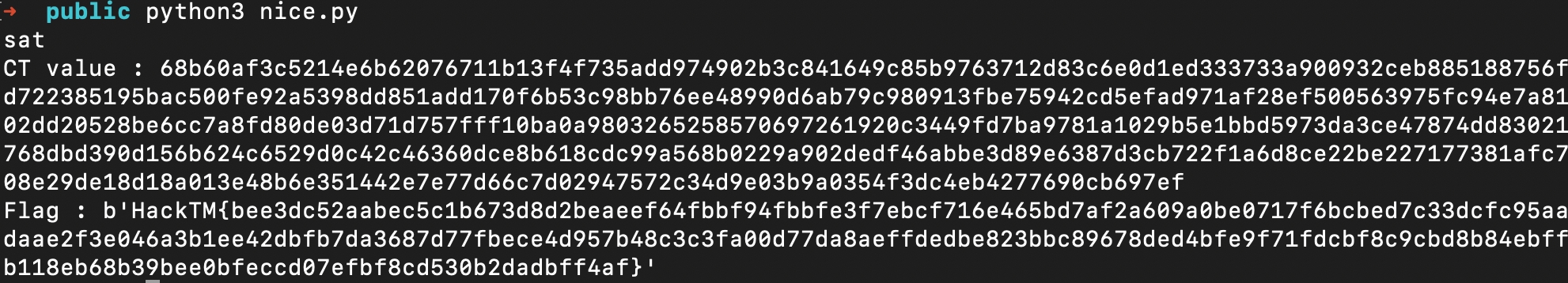

* Flag : `HackTM{bee3dc52aabec5c1b673d8d2beaeef64fbbf94fbbfe3f7ebcf716e465bd7af2a609a0be0717f6bcbed7c33dcfc95aadaae2f3e046a3b1ee42dbfb7da3687d77fbece4d957b48c3c3fa00d77da8aeffdedbe823bbc89678ded4bfe9f71fdcbf8c9cbd8b84ebffb118eb68b39bee0bfeccd07efbf8cd530b2dadbff4af}` --- # Agent Instructions: Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter: ``` GET https://kos0ng.gitbook.io/ctfs/write-up/2023/hacktm-quals/reverse-engineering.md?ask= ``` The question should be specific, self-contained, and written in natural language. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
